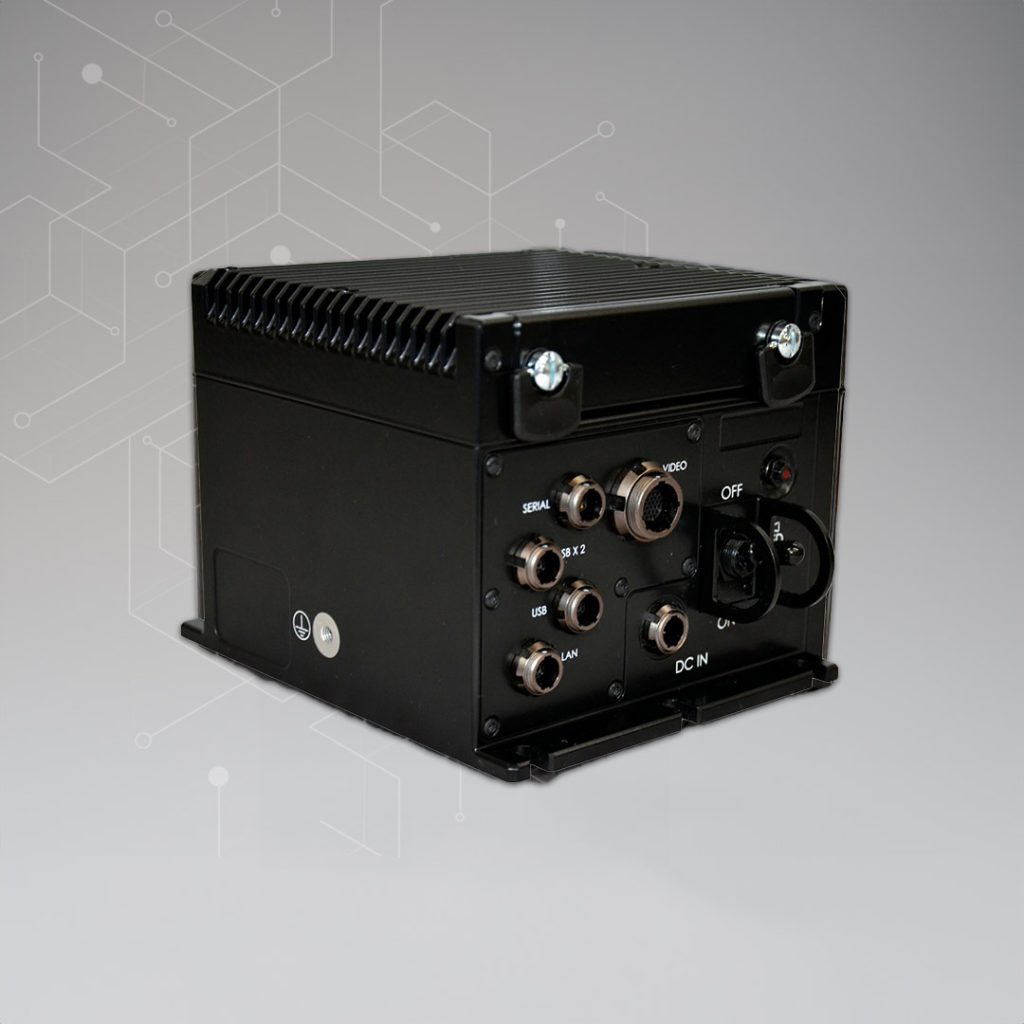

EDM-1S

Modular Intelligence. Ultra-Rugged Housing. Ready for Any Platform.

The EDM-1S is a compact, sealed, edge compute platform engineered for use in vehicles, command posts, and airborne or maritime systems. Designed to deliver the performance of a full tactical PC in a fan-less, sealed enclosure, EDM-1S leverages TYTYN’s removable Compute Card system to support mission modularity, rapid reconfiguration, and secure data handling—no racks, no noise, no compromise.

With full IP67 sealing, MIL-STD-rated ruggedness, and a 25W power profile, it delivers high-performance, software-agnostic processing to the most SWaP-constrained missions—from ground vehicles and UAVs to static sensor platforms and control nodes.

Key Capabilities

Compute Architecture

Runs on a swappable Compute Card (Intel dual-core Atom to quad-core i7 variants)
Swap Copmpute Cards to change OS, users, or mission software—no reinstallation required
Supports any x86 OS (Windows, Linux)
Certified MIL-STD-810G ruggedisation
Tamper-resistant, secure, and energy efficient (avg. 25W draw)

Full Tactical I/O in One Box

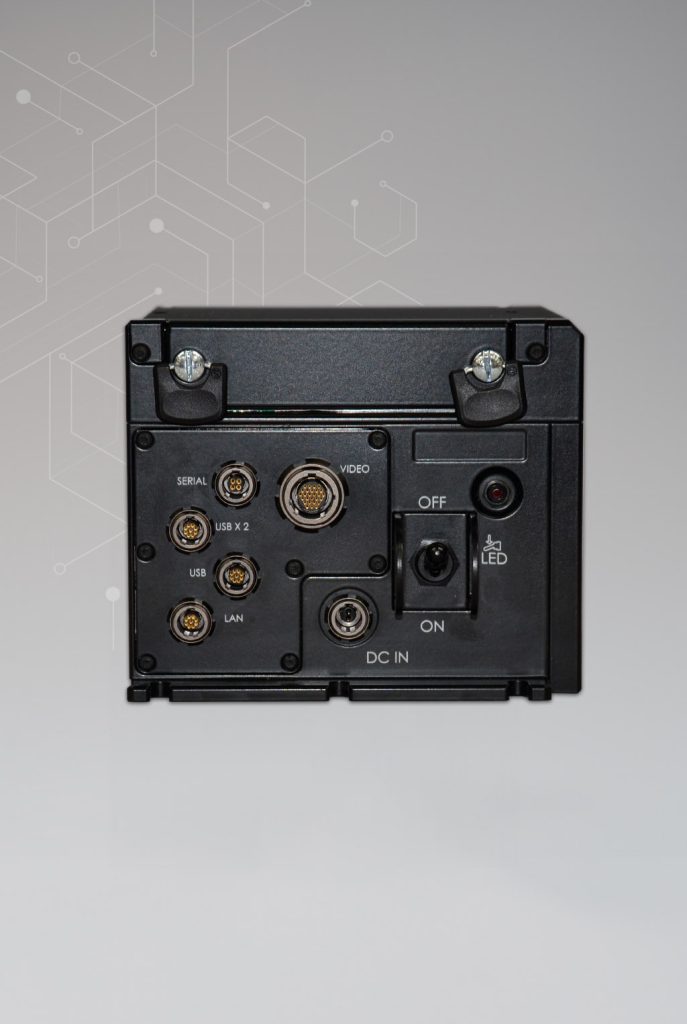

Rear and front sealed Fischer connectors support:
- 3× USB 2.0
- 2× Fast Ethernet (10/100 Mbps)
- 1× DVI-D / VGA / HDMI video out
- 1× RS232 serial port
- 1× NATO Audio/MIC
All I/O sealed to IP67 and mounted with ruggedised panels—built for vibration, exposure, and mission use

Platform-Friendly Power & Integration

12–36VDC input via secure MIL-STD-1275D panel connector
Internal isolated PSU with EMC filtering, surge protection, and thermal shutdown
Runs from vehicle power, tactical UPS, or portable field batteries

Ultra-Rugged, Fully Enclosed Design

Fully enclosed aluminium chassis with top/side heat-sinks for passive cooling (no fans)
System tested to:
- MIL-STD-810G (shock, vibration)
- Def Stan 00-35 (temp, humidity)
- IP67 (dust and water ingress)
Designed for direct bolt-in mounting with 6× M5 slots on base flanges

Technical Specifications

Category

Details

Processor

1× Compute Card (Intel dual-core to i7, user-selected)

OS Support

Windows 7/10/11, Windows Server, Linux (Ubuntu, CentOS)

Power Input

12–36VDC

Dimensions

140mm (W) × 115mm (H) × 130mm (D) / 5.5in (W) × 4.5in (H) × 5.1in (D)

Weight

2.8kg (6.1lbs)

I/O

3× USB 2.0, 2× Fast Ethernet, DVI/VGA/HDMI, RS232, Audio

Ingress Protection

IP67 sealed

Mounting

6× M5 flanges (any orientation)

Compliance

MIL-STD-810G, Def Stan 00-35, MIL-STD-1275D, 59-411

Tactical Ground Vehicles

Mount EDM-1S inside command vehicles for digital mapping, mission control, or communications—fan-less, secure, and built for vibration.

Why EDM-1S?

TYTYN EDM-1S is tactical PC power—minus the fragility.

Field-grade computing without racks or fans
Silent, sealed, and modular—ready for movement, dust, and harsh conditions
Swappable Compute Cards allow on-the-fly adaptability
Quick install with bolt-on base and standardised cable kits
Designed for integrators, trusted by operators
