Deployed Military AI
Run inference on ISR data, track threats, and support decisions—all from a self-contained unit that doesn’t rely on cloud or SATCOM.

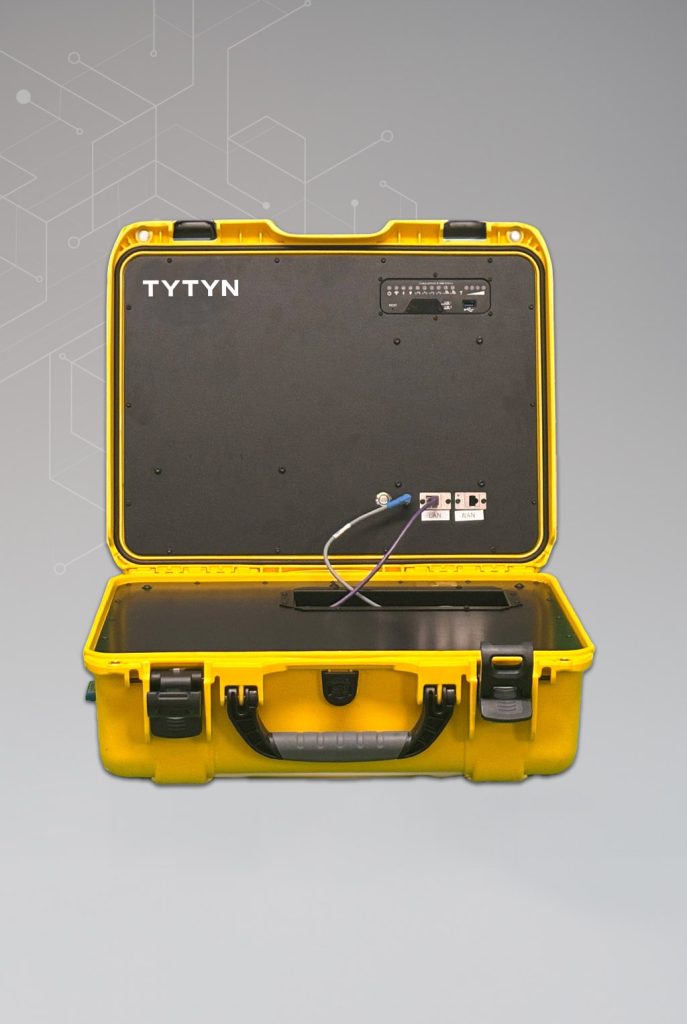

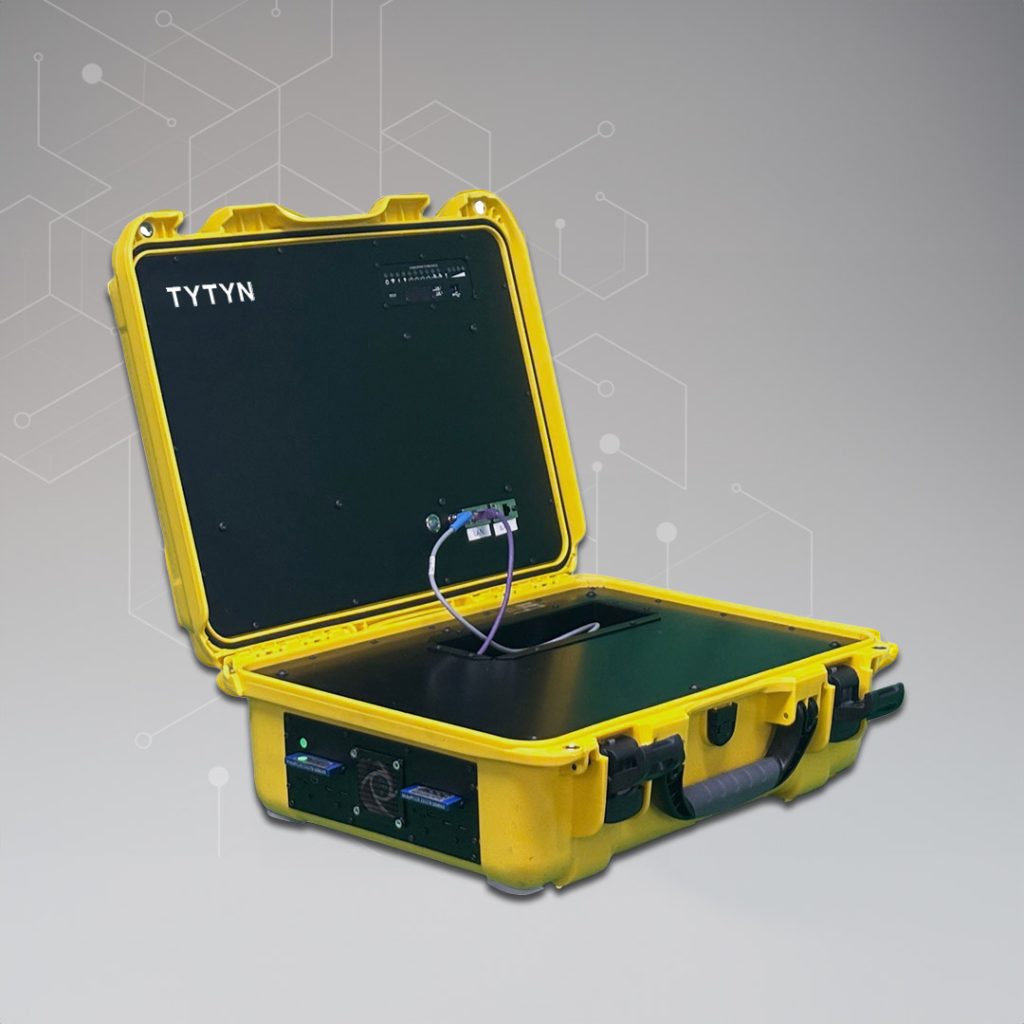

The Vanguard AIX is a next-generation edge compute platform engineered to deliver AI, real-time intelligence, and autonomous decision-making in the most challenging operational environments. Vanguard AIX makes AI and large language models (LLMs) practical—pushing capability to the edge where users need it most.
TYTYN Edge AI with VANTIQ real-time monitoring software and AI integration provides a complete AI deployable solution and speeds up decision-making where it matters most.
A joint solution developed by TYTYN and Vantiq, Vanguard AIX combines ruggedized, modular hardware with a battle-ready AI platform that operates even in fully disconnected or low-communications settings. The result: a deployable system that can process data, detect threats, and execute AI-driven logic locally—no cloud fallback required.
It also enables legacy systems to connect via private networks, giving diverse users access to AI in zero-comms environments.
From defence and national security to disaster relief, public safety, and industrial IoT—Vanguard AIX delivers rapid response, informed action, and operational resilience.
Category
Details
Compute Modules
2× BioDigitalPC 12X
Accelerators
1× Nvidia GPU (8–25W TDP, 16GB)
Storage
Up to 8TB SSD (RAID 0/1 configurable)
Networking
1× GbE LAN, 1× GbE WAN
I/O
USB-C (2× per card), DisplayPort
Comms (Optional)
Cradlepoint R1900 (5G/LTE/WiFi, Dual SIM)
Power
24V DC via rugged connector
Form Factor
NANUK 930 (503mm × 406mm × 193mm) / (19.8in x 16in x 7.6in)
Weight
11kg/24lbs
Boot Time
< 5 minutes
Run inference on ISR data, track threats, and support decisions—all from a self-contained unit that doesn’t rely on cloud or SATCOM.
Most “edge AI” systems rely on uplinks, orchestration layers, and cloud fallbacks. Vanguard AIX was designed to operate independently—without compromise.
Logic at the edge
For optimized task load
Secure, rapidly deployable
Or fully offline
Hardware upgrades
When time, power, and bandwidth are limited—Vanguard AIX delivers decisions, not just data.
Together, they power a new class of decision-making infrastructure: autonomous, adaptive, and deployed anywhere.
Built for the edge. Ready for the mission.
Powered by the people who operate in the real world.
